Application:

Applied to environmental adaptability of aerospace, marine, automotive and other electronic products



Testing Standards:

IEC 60068-2-1          IEC 60068-2-2            IEC 60068-2-14

IEC 60068-2-30       IEC 60068-2-38          IEC 60068-2-78

ISO 16750-4              MIL-STD-810G             ASTM E1457-13

JESD22-A101            GB/T 2423.1                  GB/T 2423.22



Features:

Vertical + horizontal vibration table, wider test range.

Can combine with Dongling, Labtone, CVMS, IMV, vibration shaker system.

500+ projects and rich experiences



Technical Parameters:

Model	SZ-V-225(C/D/G)	SZ-V-608(C/D/G)	SZ-V-1000(C/D/G)	SZ-V-2000(C/D/G)
Inner Size WxHxD (mm)	500x750x600 (225L)	800x950x800 (608L)	1000x1000x1000 (1000L)	2000x1000x1000 (2000L)
Exterior Size WxHxD (mm)	700×1800×1900	1000×2000×2400	1200×2000×2600	2200×2000×2600
	*exterior dimensions are subject to final design to interface with shaker system on project basis
Temperature Range	-70℃～+100/+150℃ (C:-20℃ D:-40℃ G:-70℃)
Humidity Range	10%～98%RH (*applicable with humidity chamber models only)
Temperature / Humidity Fluctuation	±0.5℃; ±2.0%RH
Temperature / Humidity Deviation	±2℃ ≤±3.0%RH (>75%RH); ≤±5.0%RH (≤75%RH)
Heating/Cooling Rate	Heating rate ≥5℃/min Cooling rate ≥2℃/min *We also make fast rate temperature chambers with heating/cooling rate ≥10℃/min, 15℃/min as per specific testing requirement.

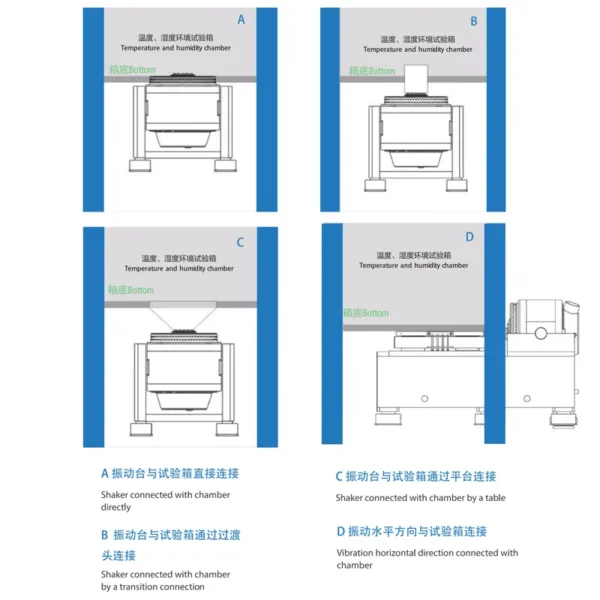

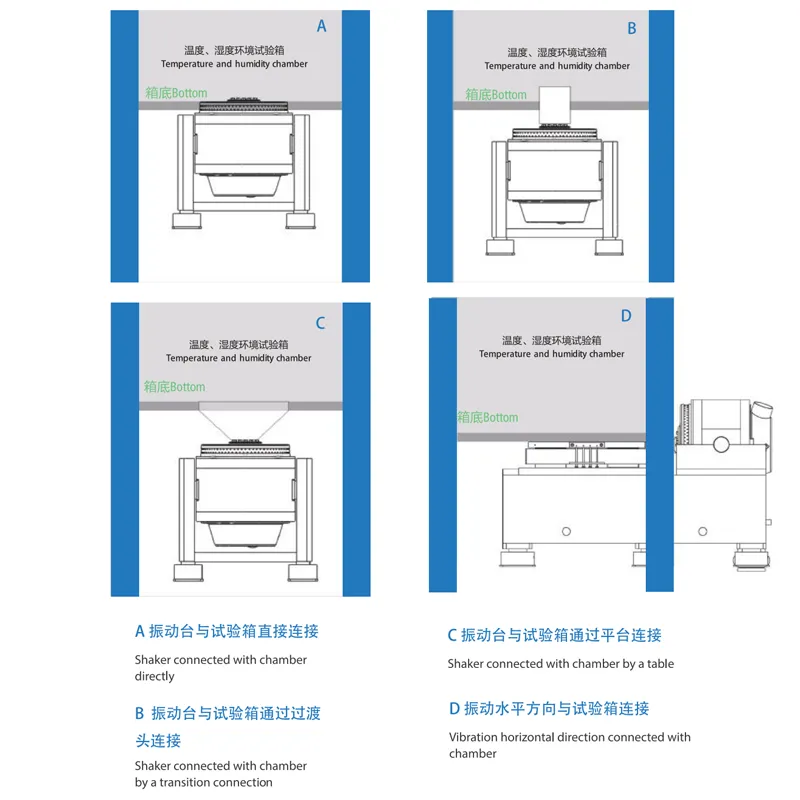

Easy interface design	Customized design on project basis to ensure the chamber can be easily interfaced with many various types of shakers for vertical, horizontal and tri-axial vibrations.
Removable floors and blind floor	Equipped with different removable floors with thermal barriers, for vertical and horizontal vibrations, can adapt the chamber to any existing standard shakers. If there is the need to use the chamber without the shaker in place, a blind floor is available.
Optional auxiliaries	Pressure release vent Gas detector Forced ventilation system CO2 extinguisher Safety lock mechanism
Safety protection features	Over temperature protection, auto pressure balancing protection, compressor overheat/over current/over pressure protection, condensation fan overheat protection, fan motor overload, short circuit protection, fan reverse protection, heater over temperature protection, short circuit protection, dry burn, water shortage protection (humidity chamber models only), earth leakage protection, overload protection, short-circuit protection, phase sequence protection.
