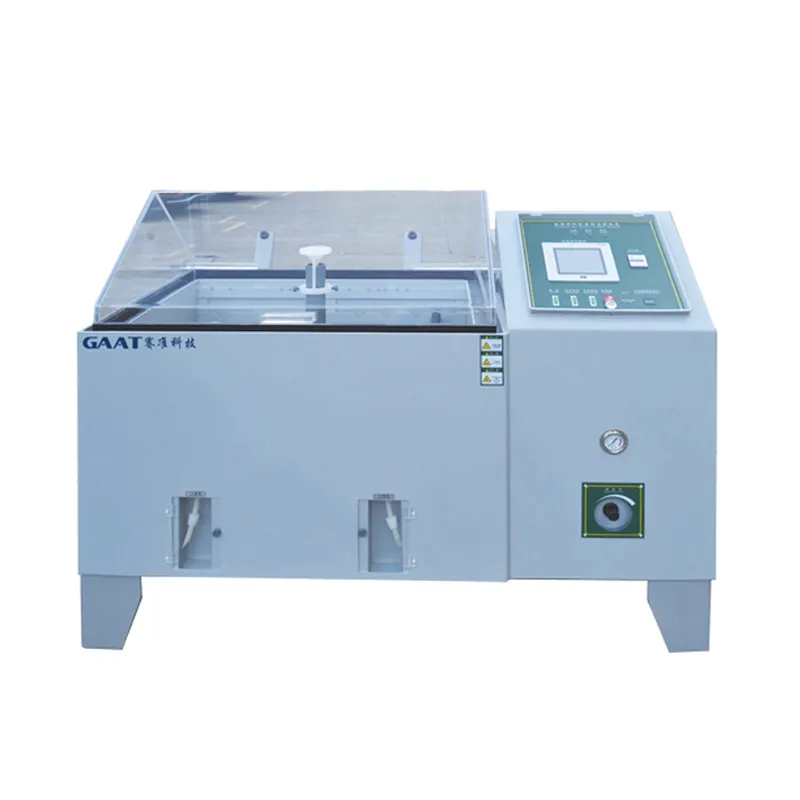

Salt spray chamber, also known as salt fog test chamber, is specialized equipment used to simulate and measure the effects of salt spray test on materials and coatings. It is typically used to perform a variety of salt spray and corrosion tests which might range from a few hours to months. This helps establish whether the product will survive the corrosive conditions that it will be exposed to.
Application:
Salt spray chambers are widely used in various industries for quality control and assurance purposes. They are particularly important in the automotive, aerospace, electronics, and marine industries where products are exposed to harsh environmental conditions.
Testing Standards:
ISO 4611, ISO 7253, ISO 9227, ASTM B 117, ASTM B368, ASTM B 380, ASTM G85-11, ASTM D 1735, DIN 50021
Features:
PVC material is economical and affordable
2 years warranty
International brand components
Multiple over-temperature protection
Comprehensive options for various sizes and capability to make large volume chambers
Technical Parameters:
| Model | SZ-60C | SZ-90C | SZ-120C | SZ-160C | SZ-200C |
| Inner Size WxHxD (mm) | 600x400x450 | 900x500x600 | 1200x500x800 | 1600x500x1000 | 2000x600x1200 |
| Exterior Size WxHxD (mm) | 1150x1100x600 | 1450x1200x850 | 2050x1320x1050 | 2450x1320x1250 | 2850x1400x1450 |
| Testing Zone Capacity (not including V shape cover) | 108L | 270L | 480L | 800L | 1440L |
| Salt Solution Tank Capacity | 15L | 25L | 40L | 40L | 40L |
| Inner Chamber Material | PVC polyvinyl board | ||||
| Method of Opening Cover | Manual | Pneumatic | |||
| Temperature Range | Test zone: RT～50℃
Humidifying tower: RT～63℃ |
||||
| Temperature Control Accuracy | Temperature fluctuation：≤ ±0.5℃
Temperature uniformity：≤ ±2℃ Temperature deviation of test zone：±1.0℃ |
||||
| Spray Method | Continuous spray, cyclic spray and programmable spray. | ||||
| Spray Volume | 1.0~2.0ml/80cm2/h | ||||
| Standard configuration | User-friendly touch screen controller with remote control and monitoring software
Fixable and moveable casters with leveling function Test porthole 1pc φ50/100/200mm V Shape sample holder, O shape sample rack and heavy load bottom sample plate Three-color tower light with buzzer to indicate oven operation status |
||||
| Options | Air compressor
Water demineralizer / water purifier External solution tank with stirrer |
||||
| Safety Features | Over temperature protection for both test chamber and pressure barrel, water leakage protection for both test chamber and pressure barrel, heater dry burn protection, water supply abnormal alarm, water drainage abnormal alarm, earth leakage protection, overload and short-circuit protection. | ||||
With 19 years of history, GAAT has been established as a global manufacturer and exporter in the R&D, production and sales of environmental test chambers.
