Application:

Automotive, electronics, medical, aerospace, etc.



Testing standards:

IEC 60068-2-1          IEC 60068-2-2: 2007       IEC 60068-2-14

IEC 60068-2-30         IEC 60068-2-38           IEC 60068-2-78

ISO 16750-4            MIL-STD-810G            ASTM E1457-13

JESD22-A10



Features:

Temperature range from -70℃ to +80℃

Test area size from 4m³to 60m³or more as customer requires

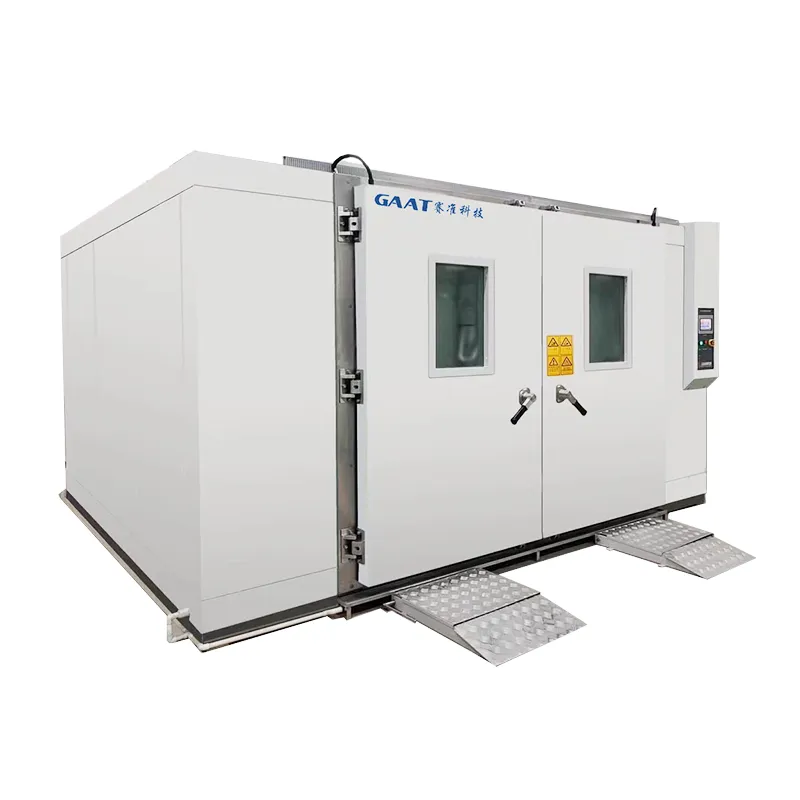

Slopes for easy access of heavy objects

Panel detachable design, easy to transport and install

Equipped with a inner safety lock to prevent people from being trapped



Technical Parameters:

Model	SZ-A-4000(D～G)	SZ-A-8000(D～G)	SZ-A-10000(D～G)
Inner Dimension WxHxD(mm)	1500x1800x1500	2000x2000x2000	2500x2200x2000
Outer Dimension WxHxD(mm)	2500x2100x1700	3100x2300x2260	3600x2300x2260
Temperature Range	-70℃～+80℃ (A1Above 80℃ is customized)（D:-40℃ G:-70℃）
Humidity Range	20%～95%R.H.(10%-98%R.H/5%～98%R.H is special customized )
Temperature Humidity Resolution/Uniformity	0.01℃; 0.1%R.H./±1.0℃; ±3.0%R.H.
Temperature Humidity Control Accuracy/Fluctuation	±1.0℃; ±2.0%R.H./±0.5℃; ±2.0%R.H.
Heating/Cooling Rate	Heating rate is 3.0℃/min, cooling rate is 1.0℃/min(2℃～15℃/min is special customized)
Inner/Outer Material	Inner material is SUS304# stainless steel, Outer material is cold-rolled steel plate with paint treatment
Insulation Material	High temperature resistant high-density polyester amine hard foam insulator material
Cooling System	Less than 10 cubic meters can choose air cooling or water cooling, more than 10 cubic meter is all water cooling
Protection Device	Compressor overload protection switch, Refrigerant high low pressure protection switch, Over temperature protection switch, Fuse, Fault warning system
Spare Parts	View Window, Test Hole, Shelf, Gauze

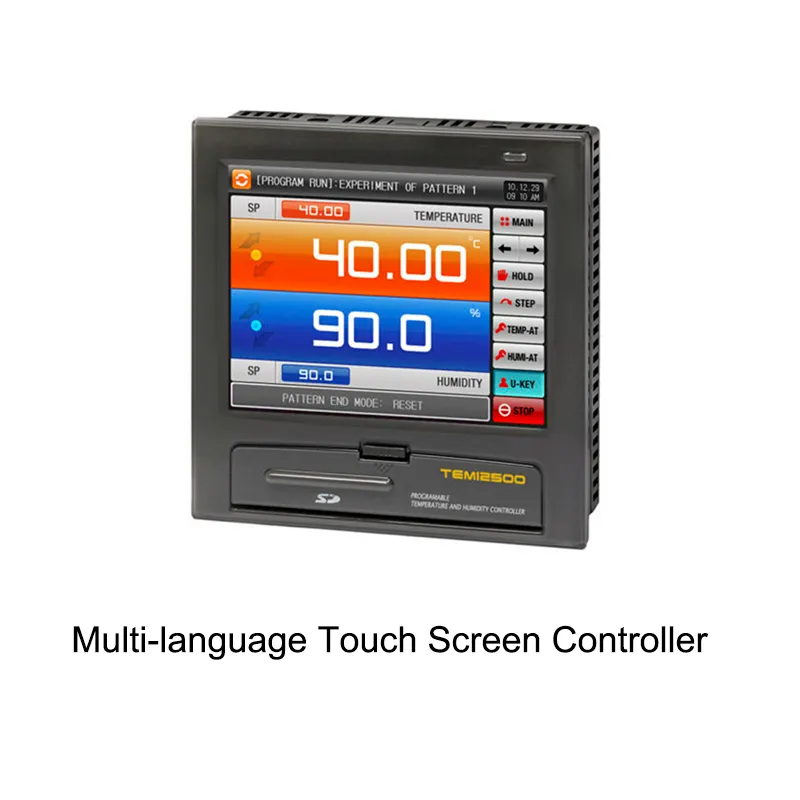

Controller	Korea Samwon or Other Brand
Compressor	France Tecumseh or Germany Bitzer
Power	3Φ380VAC±10%50/60Hz
Mark	Less than 10 cubic meter can choose whole structure type or assemble plate structure, more than 10 cubic meter is all assemble plate structure
